WPF 实现 Badge 标识
框架使用.NET4 至 .NET6
Visual Studio 2022
新建 Badge.cs 继承装饰器 Adorner 增加依赖属性
-
Text用来展示文本 -
FontSize文本大小 -
IsShow为布尔值用来是否显示Badge -
IsShow = true不设置其他属性时候只显示一个小红点 - 如果设置了
Text则根据文本的宽度高度绘制小圆点的大小
默认将其绘制到控件右上角。
实现代码
1）新建 Badge.cs 控件代码如下:
using System;
using System.Windows;
using System.Windows.Documents;
using System.Windows.Media;
namespace WPFDevelopers.Controls
{
public class Badge : Adorner
{
public static readonly DependencyProperty TextProperty =
DependencyProperty.Register("Text", typeof(string), typeof(Badge), new PropertyMetadata(string.Empty));
public static readonly DependencyProperty FontSizeProperty =
DependencyProperty.Register("FontSize", typeof(double), typeof(Badge), new PropertyMetadata(10.0d));
public static readonly DependencyProperty IsShowProperty =
DependencyProperty.RegisterAttached("IsShow", typeof(bool), typeof(Badge),
new PropertyMetadata(false, OnIsBadgeChanged));
private static FrameworkElement oldFrameworkElement;
private readonly double _size;
private readonly string _text;
public Badge(UIElement adornedElement, string text = null, double size = 0)
: base(adornedElement)
{
_text = text;
_size = size;
ToolTip = text;
}
public string Text
{
get => (string) GetValue(TextProperty);
set => SetValue(TextProperty, value);
}
public double FontSize
{
get => (double) GetValue(FontSizeProperty);
set => SetValue(FontSizeProperty, value);
}
public static string GetText(UIElement element)
{
if (element == null) throw new ArgumentNullException("Text");
return (string) element.GetValue(TextProperty);
}
public static void SetText(UIElement element, string Text)
{
if (element == null) throw new ArgumentNullException("Text");
element.SetValue(TextProperty, Text);
}
public static double GetFontSize(UIElement element)
{
if (element == null) throw new ArgumentNullException("FontSize");
return (double) element.GetValue(FontSizeProperty);
}
public static void SetFontSize(UIElement element, string Text)
{
if (element == null) throw new ArgumentNullException("FontSize");
element.SetValue(FontSizeProperty, Text);
}
private static void OnIsBadgeChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
{
if (e.NewValue is bool isBadge && d is FrameworkElement parent)
{
if (isBadge)
{
if (!parent.IsLoaded)
parent.Loaded += Parent_Loaded;
else
CreateBadge(parent);
}
else
{
parent.Loaded -= Parent_Loaded;
CreateBadge(parent, true);
}
}
}
private static void Parent_Loaded(object sender, RoutedEventArgs e)
{
if (sender is UIElement element)
CreateBadge(element);
}
private static void CreateBadge(UIElement uIElement, bool isRemove = false)
{
var layer = AdornerLayer.GetAdornerLayer(uIElement);
if (layer == null) return;
if (isRemove && uIElement != null)
{
var adorners = layer.GetAdorners(uIElement);
if (adorners != null)
foreach (var item in adorners)
if (item is Badge container)
layer.Remove(container);
return;
}
var value = GetText(uIElement);
var size = GetFontSize(uIElement);
var badgeAdorner = new Badge(uIElement, value, size);
layer.Add(badgeAdorner);
}
public static bool GetIsShow(DependencyObject obj)
{
return (bool) obj.GetValue(IsShowProperty);
}
public static void SetIsShow(DependencyObject obj, bool value)
{
obj.SetValue(IsShowProperty, value);
}
protected override void OnRender(DrawingContext drawingContext)
{
var adornedElement = AdornedElement as FrameworkElement;
var margin = adornedElement.Margin;
var desiredWidth = adornedElement.DesiredSize.Width - margin.Left - margin.Right;
var brush = new SolidColorBrush((Color) Application.Current.TryFindResource("WD.DangerColor"));
brush.Freeze();
var radius = 5.0;
var center = new Point(desiredWidth, 0);
FormattedText formattedText = null;
if (!string.IsNullOrEmpty(_text))
formattedText = DrawingContextHelper.GetFormattedText(
_text,
Brushes.White,
FlowDirection.LeftToRight,
_size);
var pen = new Pen(Brushes.White, .3);
pen.Freeze();
drawingContext.PushTransform(new MatrixTransform(Matrix.Identity));
if (formattedText != null)
{
var height = formattedText.Height;
var width = formattedText.Width > 20 ? 20 : formattedText.Width;
var isSingle = false;
if (_text.Length == 1)
{
var max = formattedText.Width > formattedText.Height ? formattedText.Width : formattedText.Height;
height = max;
width = max;
isSingle = true;
}
var startPoint = new Point(0, 0);
var endPoint = new Point(0, 0);
if (!isSingle)
{
startPoint = new Point(center.X - width / 1.4, center.Y - height / 1.8);
endPoint = new Point(center.X + width / 1.4 + 6, center.Y + height / 1.8);
}
else
{
startPoint = new Point(center.X - width / 2, center.Y - height / 2);
endPoint = new Point(center.X + width / 2, center.Y + height / 2);
}
var rect = new Rect(startPoint, endPoint);
drawingContext.DrawRoundedRectangle(brush, pen, rect, 8, 8);
formattedText.MaxTextWidth = width + 10;
var centerRect = new Point(rect.Left + rect.Width / 2, rect.Top + rect.Height / 2);
var textPosition = new Point(centerRect.X - formattedText.Width / 2,
centerRect.Y - formattedText.Height / 2);
drawingContext.DrawText(formattedText, textPosition);
}
else
{
drawingContext.DrawEllipse(brush, pen, center, radius, radius);
}
drawingContext.Pop();
RenderOptions.SetEdgeMode(this, EdgeMode.Unspecified);
}
}
}2）新建 BadgeExample.xaml 使用 Badge 控件代码如下:
<UserControl
x:Class="WPFDevelopers.Samples.ExampleViews.BadgeExample"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:WPFDevelopers.Samples.ExampleViews"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:wd="https://github.com/WPFDevelopersOrg/WPFDevelopers"
d:DesignHeight="450"
d:DesignWidth="800"
mc:Ignorable="d">
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="Auto" />
<RowDefinition Height="Auto" />
</Grid.RowDefinitions>
<ToggleButton
x:Name="MyBadgeToggleButton"
Margin="10"
HorizontalAlignment="Center"
Content="显示Badge" />
<StackPanel
Grid.Row="1"
HorizontalAlignment="Center"
Orientation="Horizontal">
<Button
wd:Badge.IsShow="{Binding ElementName=MyBadgeToggleButton, Path=IsChecked}"
wd:Badge.Text="new"
Content="Default"
Style="{DynamicResource WD.PrimaryButton}" />
<Button
Margin="40,0"
wd:Badge.FontSize="12"
wd:Badge.IsShow="{Binding ElementName=MyBadgeToggleButton, Path=IsChecked}"
wd:Badge.Text="3"
Content="Success"
Style="{DynamicResource WD.SuccessDefaultButton}" />
<Button
wd:Badge.FontSize="12"
wd:Badge.IsShow="{Binding ElementName=MyBadgeToggleButton, Path=IsChecked}"
wd:Badge.Text="10+"
Content="Warning"
Style="{DynamicResource WD.WarningDefaultButton}" />
<Button
Margin="40,0"
wd:Badge.IsShow="{Binding ElementName=MyBadgeToggleButton, Path=IsChecked}"
wd:Badge.Text="NEW"
Content="Danger"
Style="{DynamicResource WD.DangerDefaultButton}" />
<Rectangle
Width="100"
Height="100"
wd:Badge.IsShow="{Binding ElementName=MyBadgeToggleButton, Path=IsChecked}"
Fill="Aqua" />
</StackPanel>
</Grid>

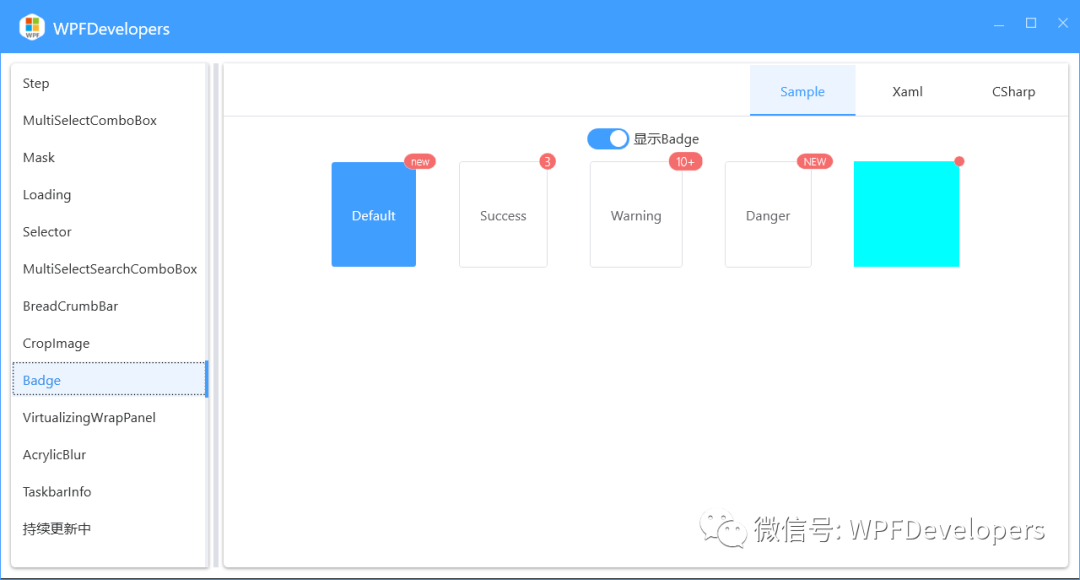

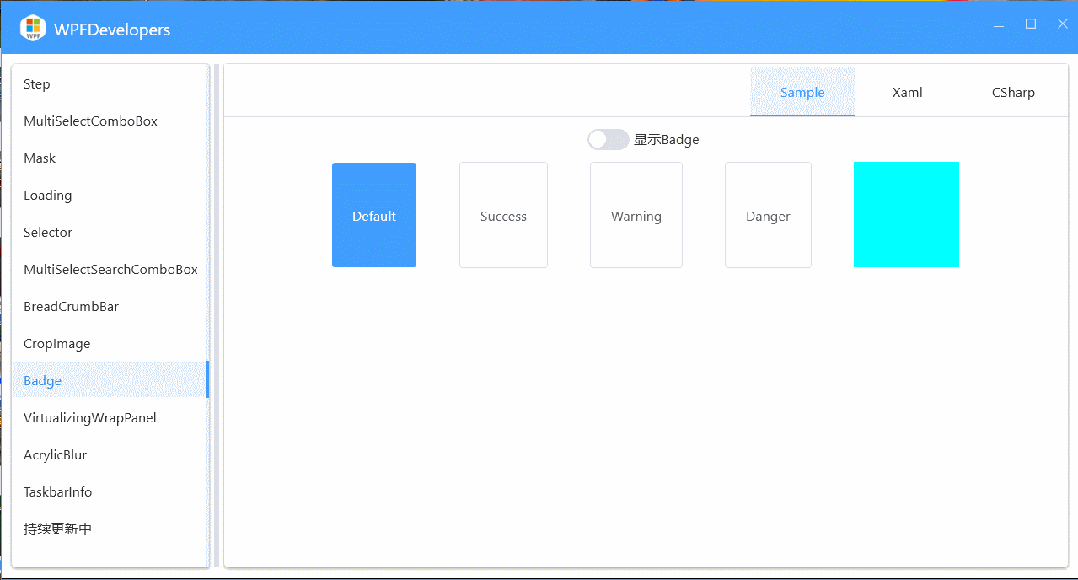

</UserControl>效果图
